Seven tools. One precision workshop.
Drill press, horizontal boring, lathe, table saw, disc sander, over-table router and under-table shaper in one upgradeable American-built machine.

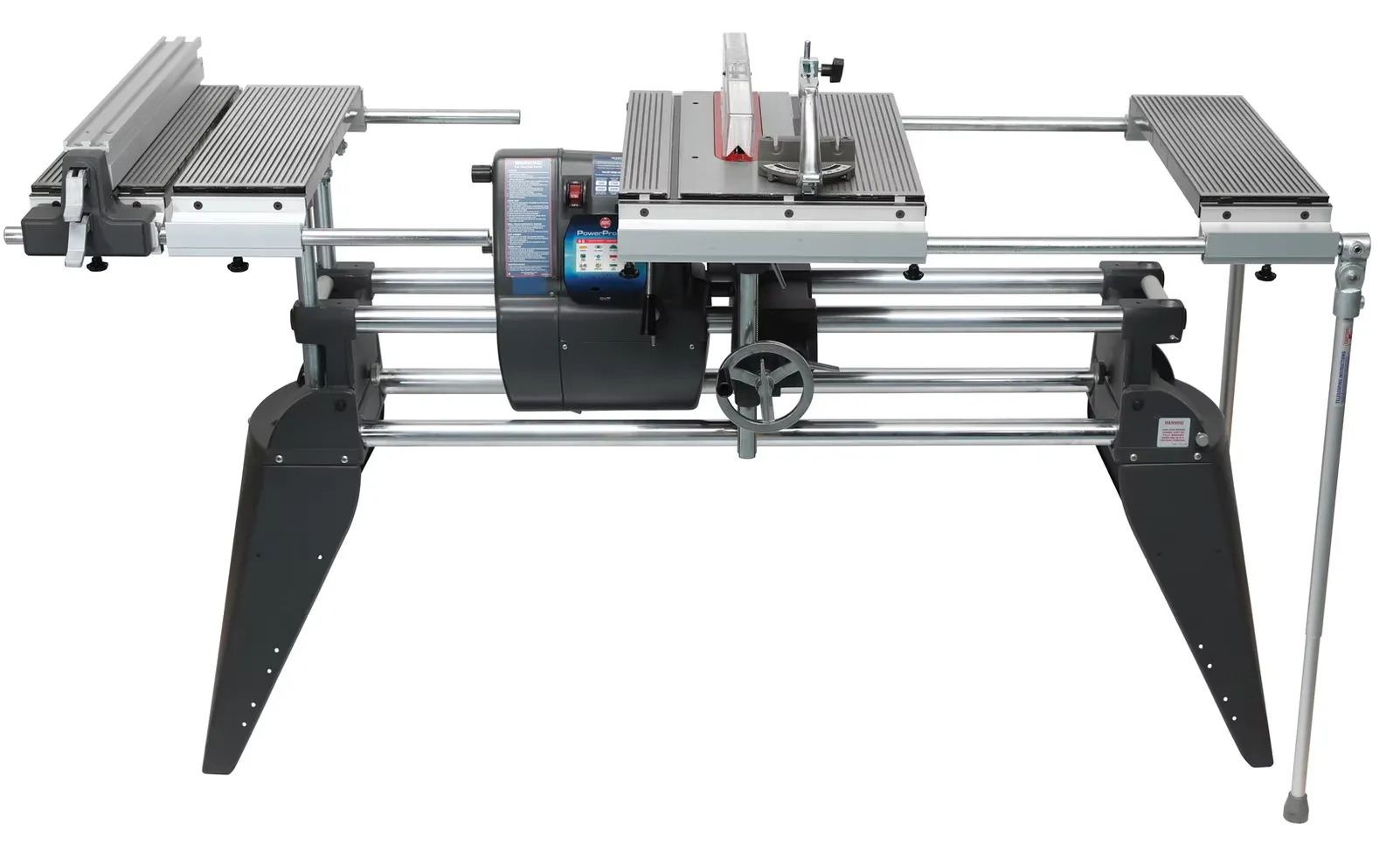

MARK 7
Seven woodworking tools in the footprint of one. Built in America with the digital PowerPro smart motor — designed to be upgraded, not replaced.
The 7 Functions of the MARK 7
One machine converts between seven precision woodworking modes. No second machine. No second footprint.

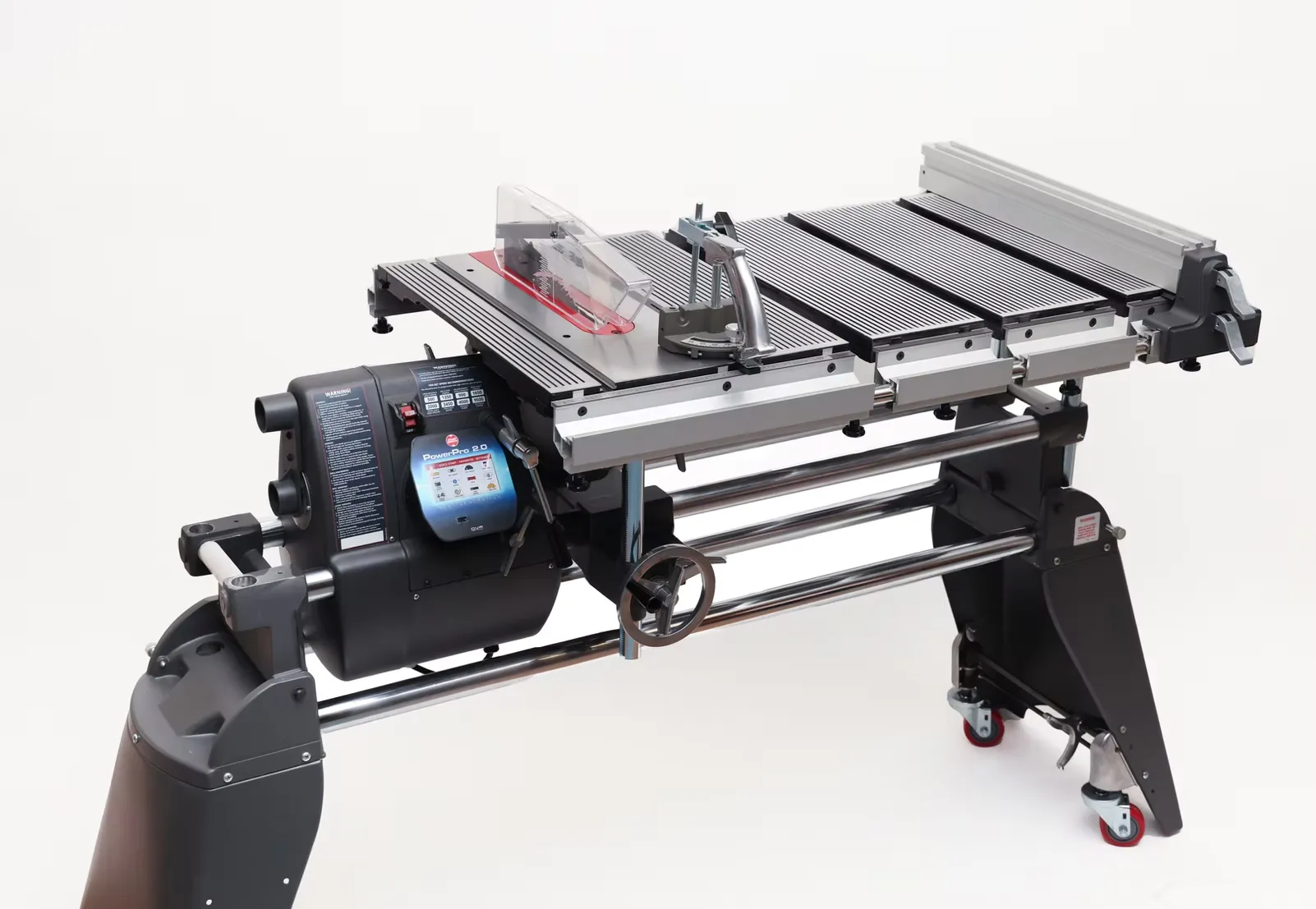

10" Table Saw
Rip and crosscut with precision. The 10" blade cuts stock up to 3-1/4" thick, and telescoping extension tables store away when not needed.
- Speed
- 250-10,000 RPM
- Rip capacity
- 98" with extensions
- Fence
- Self-aligning, double-locking
Seven Tools in the Space of One
Seven separate stationary tools require approximately 200 sq ft of floor space. The MARK 7 stores in a 2 × 6 foot area — that's 24 sq ft — and rolls on casters wherever you need it.

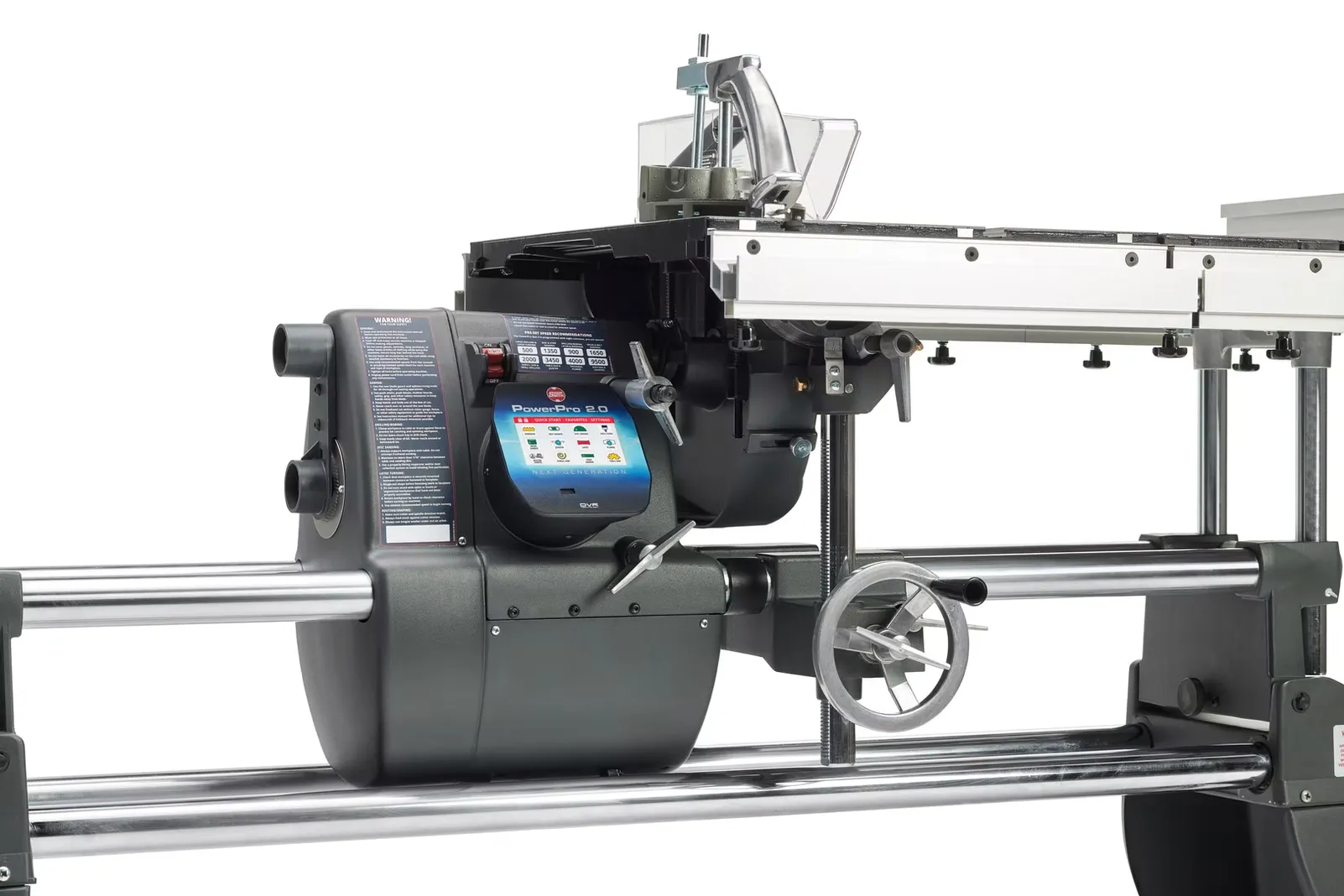

Inside the MARK 7
22 precision components — hover, focus or click any number to learn what it does.

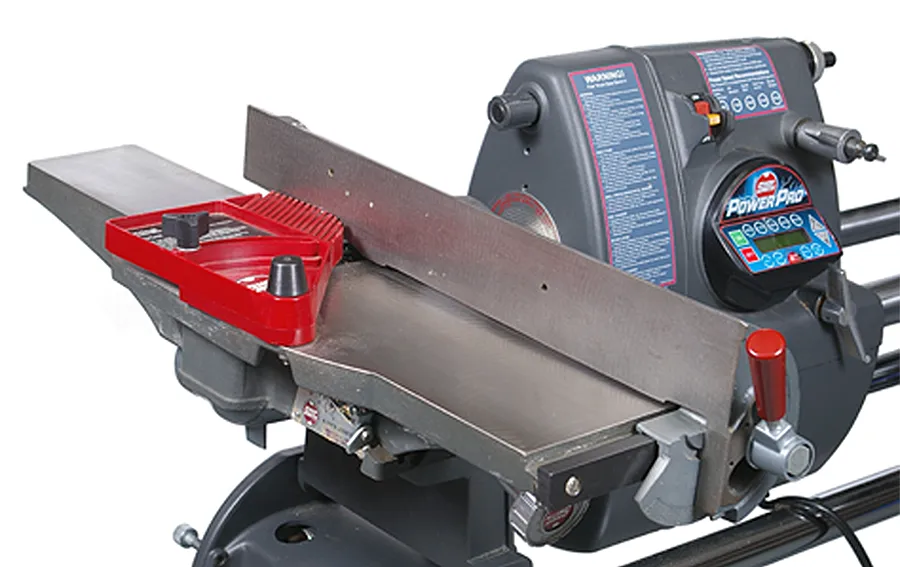

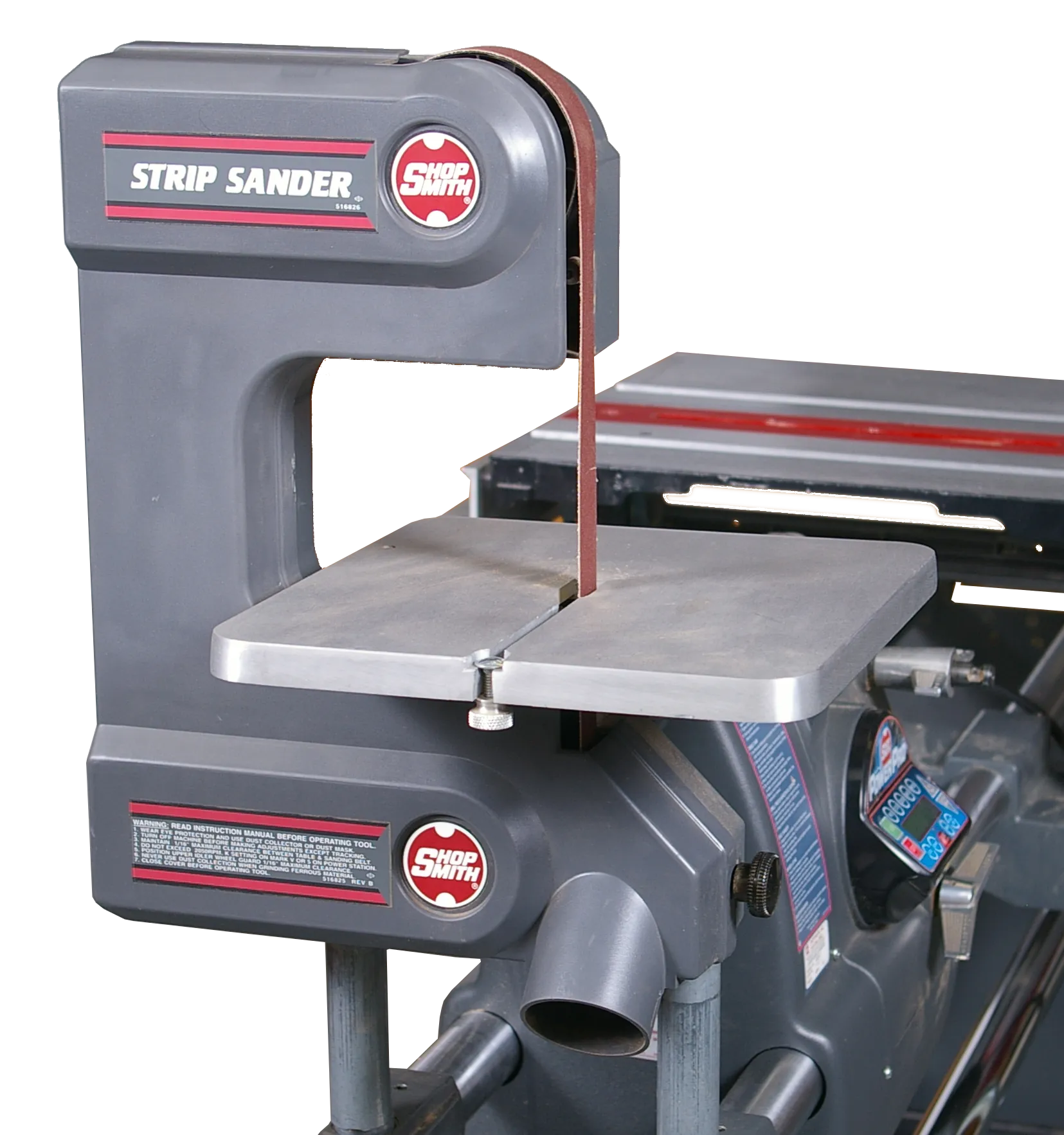

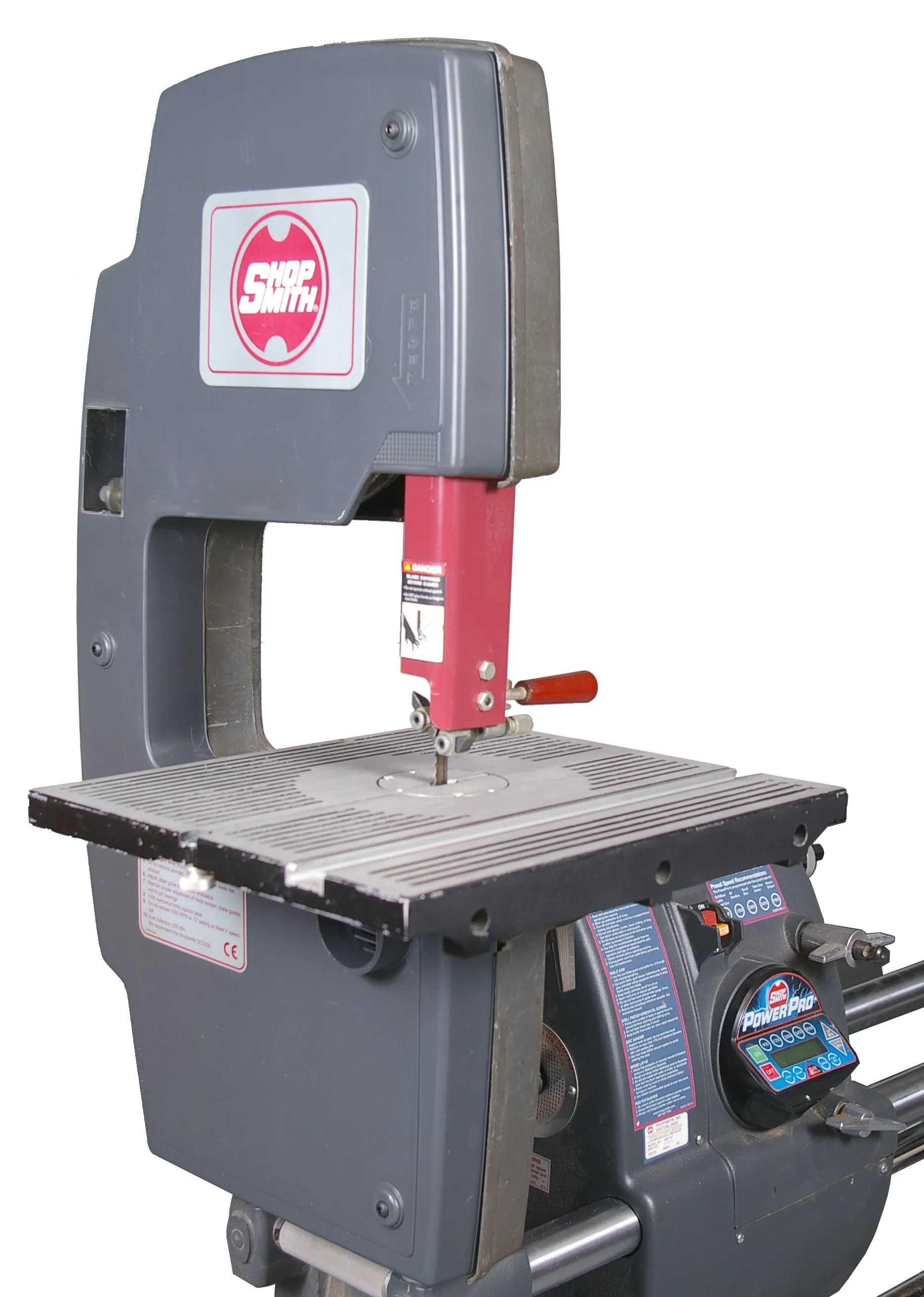

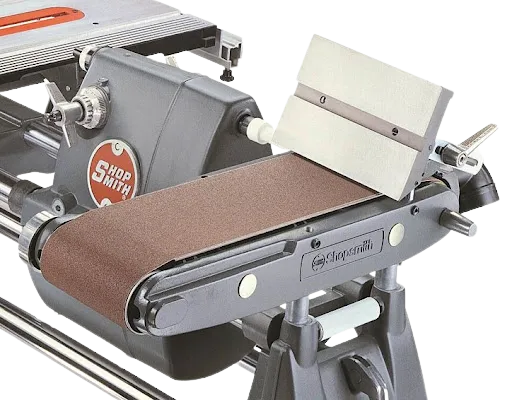

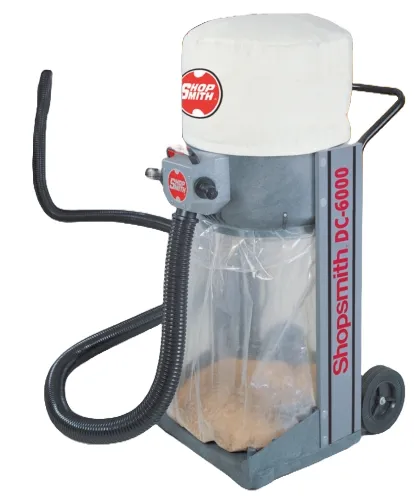

MARK 7 Attachments
Every attachment is hand-assembled in Dayton and built to order. Add capabilities as your skills grow.
A Feature-by-Feature Comparison
Not sure which MARK to choose? Both are exceptional — but each suits a different woodworker. Use this chart to find the system that matches where you are today and where you want to go.
| Feature | MARK 7 | MARK 5 |
|---|---|---|
| Tools included | 7 | 5 |
| 10" Table Saw | ✓ | ✓ |

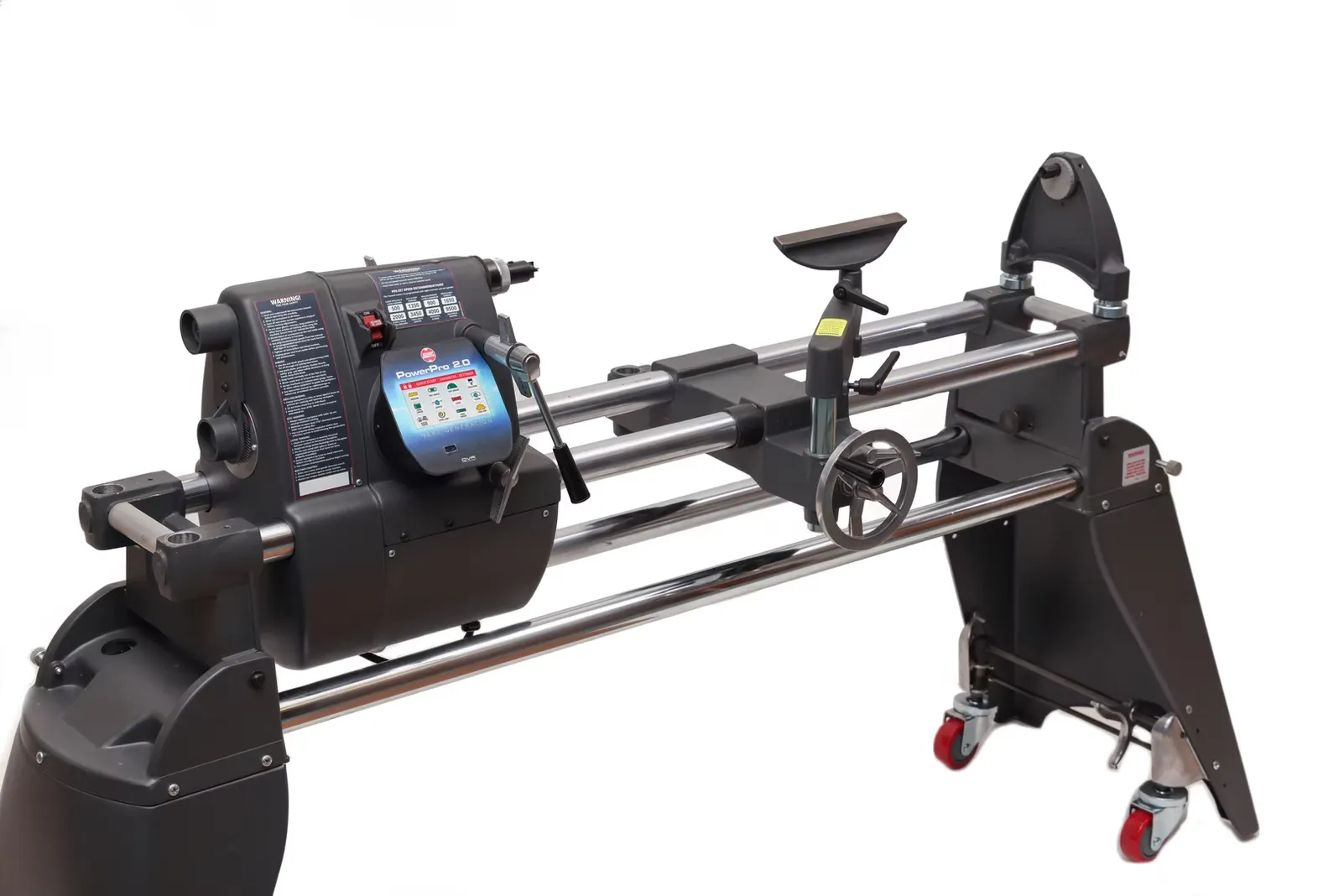

| 34" Lathe | Spindle + 16-1/2" bowl turning | Spindle + 16-1/2" bowl turning |

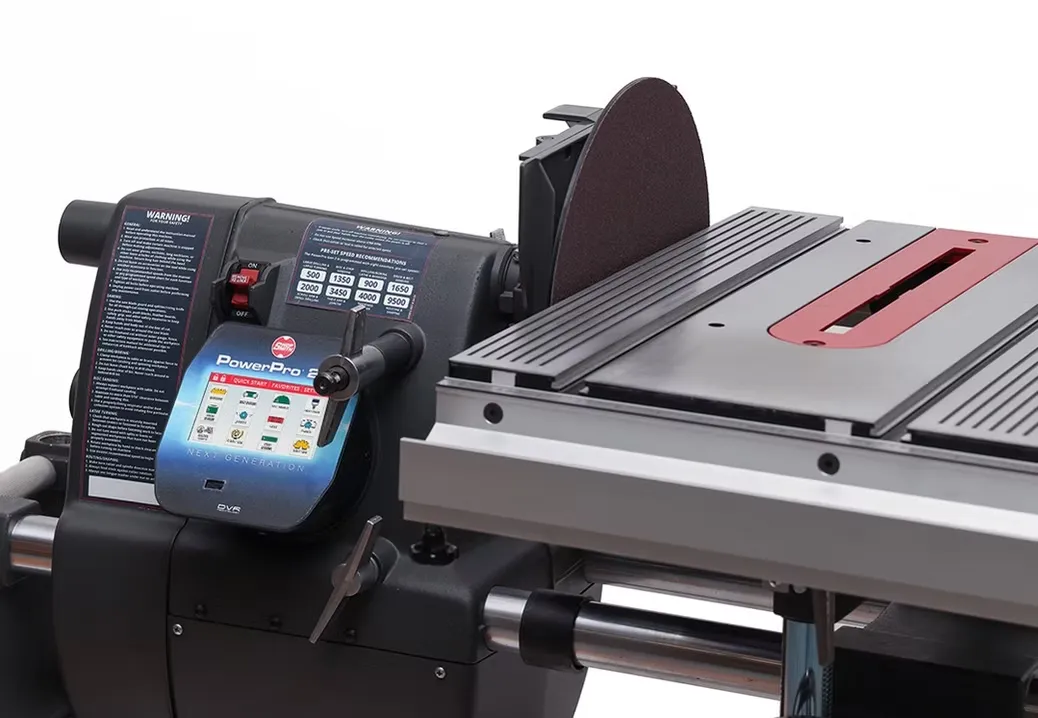

| 12" Disc Sander | ✓ | ✓ |
| Horizontal Boring | ✓ | ✓ |
| 16-1/2" Drill Press | 25" chuck-to-table | 25" chuck-to-table |
| Over-Table Router | ✓ | — |
| Under-Table Shaper | ✓ | — |
| Motor | 1 3/4 HP at 110V, 2 HP at 220V | 1-1/8 HP Conventional Motor (Reeves Drive) |
| Speed range | 250-10,000 RPM | 700-5,200 RPM |
| Pre-set speed database | ✓ | — |
| Footprint | 71" long | 71" long |
| Floating extension tables | ✓ | ✓ |
| T-Track fence system | ✓ | ✓ |
| Work packages available | — | ✓ |
